Demonstration circuit 534 is a fast transient response, very low dropout linear regulator featuring the 4A output current LT3150 linear regulator controller. The DC534 has an input voltage range of 1.1V to 10V and generates a jumper-selectable output voltage of 1.2V, 1.5V or 1.8V. With the LT3150 driving external N-channel MOSFETs as source followers, the DC534 can produce very fast transient response. The proper selection of the Rds(on) of the MOSFETs allows dropout voltages below 300 mV. These capabilities, plus its ability to maintain stable operation with ceramic output capacitors, make the DC534 voltage regulator ideally suited for low VIN-to-VOUT applications, such as microprocessor/microcontroller/FPGA power supplies.

The LTC6910 family are low noise digitally programmable gain amplifiers (PGAs) that are easy to use and occupy very little PC board space. The inverting gain is adjustable using a 3-bit digital input to select gains of 0, 1, 2, 5, 10, 20, 50 and 100V/V in the LTC6910-1; 0, 1, 2, 4, 8, 16, 32 and 64V/V in the LTC6910-2; and 0, 1, 2, 3, 4, 5,6 and 7V/V in the LTC6910-3.The LTC6910-Xs are inverting amplifiers with rail-to-rail output. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6910-X family is offered in an 8-lead SOT-23 package.Applications Data Acquisition Systems Dynamic Gain Changing Automatic Ranging Circuits Automatic Gain Control

DC551A-B: Demo Board for the LTC4002-4.2 Standalone Li-Ion Switch Mode Battery Charger.

The LTC2216/LTC2215 are 80Msps/65Msps sampling 16- bit A/D converters designed for digitizing high frequency, wide dynamic range signals with input frequencies up to 400MHz. The input range of the ADC is ?xed at 2.75VP-P.The LTC2216/LTC2215 are perfect for demanding communications applications, with AC performance that includes 81.5dBFS noise ?oor and 100dB spurious free dynamic range (SFDR). Ultra low jitter of 85fsRMS allows undersampling of high input frequencies while maintaining excellent noise performance. Maximum DC specs include ?3.5LSB INL, ?1LSB DNL (no missing codes). The digital output can be either differential LVDS or single-ended CMOS. There are two format options for the CMOS outputs: a single bus running at the full data rate or demultiplexed buses running at half data rate. A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V. The ENC+ and ENC??inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed with a wide range of clock duty cycles.Applications Telecommunications Receivers Cellular Base Stations Spectrum Analysis Imaging Systems ATE

DC573A: Demo Board for the LTC2400 24-Bit µPower No Latency Delta-Sigma ADC in SO-8.

MSP-TS430PW14 - 14-pin Target Development Board for MSP430F2x and MSP430G2x MCUs

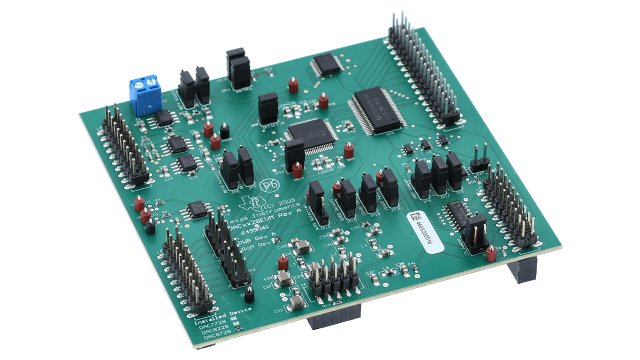

96 Channel, 12-Bit DAC Evaluation Module

TPD2E1B06 USB System-Level ESD Protection Evaluation Module

TUSB4020BPHPEVM Evaluation Module

RFID Transponder Tools NFC/RFID BoosterPack for LaunchPads

BOARD EXPERIMENTER FOR MSP430

TPS63070 Buck-Boost Converter Evaluation Module

The ADV7619 is a high quality, two input, one output (2:1) multiplexed High-Definition Multimedia Interface (HDMI?) receiver. The ADV7619 is offered in professional (no HDCP keys) and commercial versions. The operating temperature range is 0?C to 70?C.The ADV7619 incorporates a dual input HDMI-capable receiver that supports all mandatory 3D TV formats defined in the HDMI 1.4a specification, HDTV formats up to 1080p 36-bit Deep Color/2160p 8-bit, and display resolutions up to 4k ? 2k (3840 ? 2160 at 30 Hz). It integrates an HDMI CEC controller that supports the capability discovery and control (CDC) feature.The ADV7619 incorporates Xpressview? fast switching on both input HDMI ports. Using the Analog Devices, Inc., hardware-based HDCP engine to minimize software overhead, Xpressview technology allows fast switching between both HDMI input ports in less than 1 sec.Each HDMI port has dedicated 5 V detect and Hot Plug? assert pins. The HDMI receiver also includes an integrated programmable equalizer that ensures robust operation of the interface with long cables.The ADV7619 offers a flexible audio output port for audio data extraction from the HDMI stream. HDMI audio formats, including SACD via DSD and HBR, are supported by the ADV7619.The HDMI receiver has advanced audio functionality, such as a mute controller, that prevents audible extraneous noise in the audio output.The ADV7619 contains one main component processor (CP), which processes video signals from the HDMI receiver up to 1080p 36-bit Deep Color. It provides features such as contrast, brightness and saturation adjustments, STDI detection block, free-run, and synchronization alignment controls.For video formats with pixel clocks higher than 170 MHz, the video signals received on the HDMI receiver are output directly to the pixel port output. To accommodate the higher bandwidth required for these higher resolutions, the output on the pixel bus consists of two 24-bit buses running at up to 150 MHz: one bus contains the even pixels, and the other bus contains the odd pixels. When these two buses are combined, they allow the transfer of video data with pixel clocks up to 300 MHz. In this mode, both 4:4:4 RGB 8-bit and 4:2:2 12-bit are supported.Fabricated in an advanced CMOS process, the ADV7619 is provided in a 14 mm ? 14 mm, 128-lead, surface-mount, RoHS-compliant TQFP_EP package and is specified over the 0?C to 70?C temperature range. APPLICATIONSProjectorsVideo conferencingHDTVAVR, HTiBSoundbarVideo switch

The AD7991 /?AD7995?/?AD7999 are 12-/10-/8-bit, low power, successive approximation ADCs with an I2C?-compatible interface. Each part operates from a single 2.7 V to 5.5 V power supply and features a 1 ?s conversion time. The track-and-hold amplifier allows each part to handle input frequencies of up to 14 MHz, and a multiplexer allows taking samples from four channels.Each AD7991 / AD7995 / AD7999 provides a 2-wire serial interface compatible with I2C interfaces. The AD7991 and AD7995 come in two versions and each version has an individual I2C address. This allows two of the same devices to be connected to the same I2C bus. Both versions support standard, fast, and high speed I2C interface modes. The AD7999 comes in one version.The AD7991 / AD7995 / AD7999 normally remain in a shutdown state, powering up only for conversions. The conversion process is controlled by a command mode, during which each I2C read operation initiates a conversion and returns the result over the I2C bus.When four channels are used as analog inputs, the reference for the part is taken from VDD; this allows the widest dynamic input range to the ADC. Therefore, the analog input range to the ADC is 0 V to VDD;. An external reference, applied through the VIN3/VREF input, can also be used with this part.PRODUCT HIGHLIGHTS Four single-ended analog input channels, or three single-ended analog input channels and one reference input channel. I2C-compatible serial interface. Standard, fast, and high speed modes. Automatic shutdown. Reference derived from the power supply or external reference. 8-lead SOT-23 package.APPLICATIONS System monitoring Battery-powered systems Data acquisition Medical instruments

The Automotive Audio Bus? (A2B?) is an innovative technology that reduces system cost, weight, and design complexity by distributing audio and control data, together with clock and power over a single, low-cost, unshielded twisted pair cable. The AD2425W is an enhanced A2B transceiver offering an expanded feature set while retaining complete compatibility with existing AD241x devices. The AD2425W is fully configurable supporting both master and slave functionality.The AD2425W is targeted for use in wiring intensive applications where reducing the weight or complexity of existing cable harnesses is a primary system design objective. These applications include Premium Audio Systems, Active Noise Cancellation, and In-Car Communications.Applications Automotive audio communication link Active noise cancellation Microphone arrays for hands free and in car communication

LMH3401 Evaluation Module

The LT3995 is an adjustable frequency monolithic buck switching regulator that accepts a wide input voltage range up to 60V. Low quiescent current design consumes only 2.7?A of supply current while regulating with no load. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping the output ripple below 15mV in a typical application. The LT3995 can supply up to 3A of load current and has current limit foldback to limit power dissipation during short circuit. A low dropout voltage of 500mV is maintained when the input voltage drops below the programmed output voltage, such as during automotive cold crank.An internally compensated current mode topology is used for fast transient response and good loop stability. A high efficiency 85m? switch is included on the die along with a boost Schottky diode and the necessary oscillator, control, and logic circuitry. An accurate 1.02V threshold enable pin can be driven directly from a microcontroller or used as a programmable undervoltage lockout. A capacitor on the SS pin provides a controlled inrush current (soft-start). A power good flag signals when VOUT reaches 91.6% of the programmed output voltage. The LT3995 is available in a small 16-lead MSOP package with exposed pad for low thermal resistance.Applications Automotive Battery Regulation Portable Products Industrial Supplies
