With this bundle you have all the tools and components needed to follow the experience of building your very own Arduino UNO and the synth shield.
Begin your journey to become a maker with the Make Your UNO Soldering Bundle, which includes the Arduino Make Your UNO Kit and all the needed tools to build a soldering station at home.
With the Arduino Make Your UNO Kit you will learn the basics of electronics by assembling your Arduino UNO and become familiar with soldering by mounting every single component.
The Arduino Soldering Kit contains all the tools and safety gear needed to set your very own soldering station. The temperature of the soldering iron included in this kit can be adjusted within the range of 200°C to 450°C. Additionally, it has an easy-to-use mechanism to exchange the soldering tips.
Tech specs

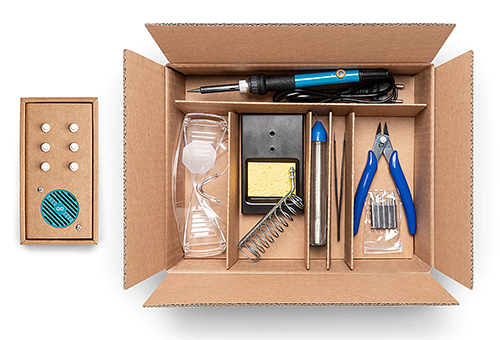

The Soldering Kit includes:
- 60 Watts - 220V soldering iron with adjustable temperature
- 5 tips for soldering iron
- 1 stand for soldering iron
- Lead-free solder wire
- Safety glasses
- Wire cutter
- Precision Tweezers
The Arduino Make Your UNO Kit contains:
- Arduino Make Your UNO
- 1 x Make Your UNO PCB
- 1 x USB C Serial adapter Board
- 7 x Resistors 1k Ohm
- 2 x Resistors 10k Ohm
- 2 x Resistors 1M Ohm
- 1 x Diode (1N4007)
- 1 x 16MHz Crystal
- 4 x Yellow LEDs
- 1 x Green LED
- 1 x Push-Button
- 1 x MOSFET
- 1 x LDO (3.3V)
- 1 x LDO (5V)
- 3 x Ceramic capacitors (22pF)
- 3 x Electrolytic capacitors (47uF)
- 7 x Polyester capacitors (100nF)
- 1 x Socket for ATMega 328p
- 2 x I/O Connectors
- 1 x Connector header 6 pins
- 1 x Barrel jack connector
- 1 x ATmega 328p Microcontroller
- Arduino Audio Synth
- 1 x Audio Synth PCB
- 1 x Resistor 100k Ohm
- 1 x Resistor 10 Ohm
- 1 x Audio amplifier (LM386)
- 1 x Ceramic capacitors (47nF)
- 1 x Electrolytic capacitors (47uF)
- 1 x Electrolytic capacitors (220uF)
- 1 x Polyester capacitor (100nF)
- 4 x connectors pin header
- 6 x potentiometer 10k Ohm with plastic knobs
- Spare parts
- 2 x Electrolytic capacitors (47uF)
- 2 x Polyester capacitor (100nF)
- 2 x Ceramic capacitors (22pF)
- 1 x Push-Button
- 1 x Yellow LEDs
- 1 x Green LED
- Mechanical parts
- 5 x Spacers 12mm
- 11 x Spacers 6mm
- 5 x screw nuts
- 2 x screws 12mm
