Series: B82801A
Part Number: B82801A0824A100
Description

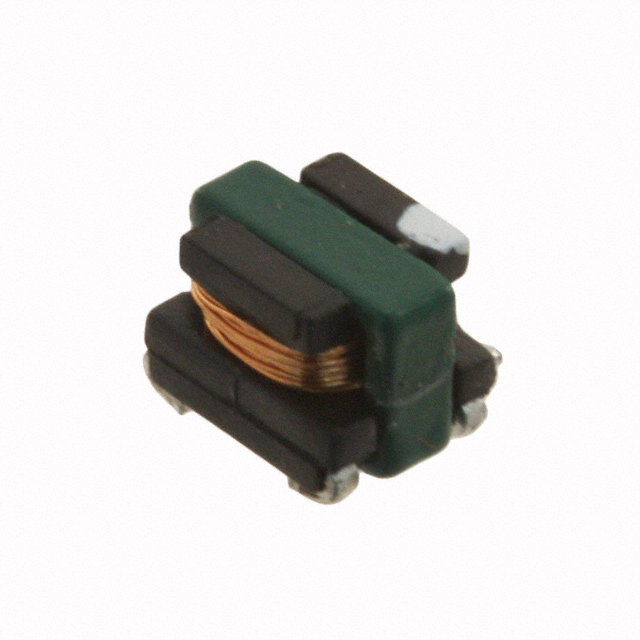

TRANSFORMER CURRENT E4.2 820UH; Turns Ratio:1:100; DC Resistance:8.7ohm; Inductance:820µH; ET Constant:-; Primary Current:5A; Transformer Mounting:Surface Mount; Product Range:-; SVHC:No SVHC (15-Jun-2015); Depth Max:3.5mm; External Length / Height:4.7mm; External Width:3.5mm; Frequency Max:1MHz; Frequency Min:50kHz; Input Current:5A; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Secondary Burden Resistance:8.7ohm; Test Voltage:360VAC; Transformer Type:Current; Type:E 4.2; Weight:0.15g; Winding Resistance Min:2.5mohm
