BASIC SWITCH OT PLUNGER SPDT 5A 480V; Product Range:BZ Series; Contact Configuration:SPDT; Switch Terminals:Screw; Contact Current Max:5A; Contact Voltage AC Nom:480VAC; Contact Voltage DC Nom:250VDC; Microswitch Type:Standard

MICROSWITCH PLUNGER SPST-NO 15A 250V; Microswitch Type:Standard; Microswitch Actuator:Overtravel Plunger; Contact Configuration:SPST-NO; Switch Terminals:Screw; Contact Current Max:15A; Contact Voltage DC Nom:-; Product Range:- ;RoHS Compliant: Yes

Limit Switch Actuator:Side Rotary; Contact Configuration:SPDT; Contact Current AC Max:-; Contact Voltage AC Max:-; Operating Force Max:0.12N-m; Product Range:GLC Series; Contact Current DC Max:100mA; Contact Voltage DC Max:50V ;RoHS Compliant: Yes

SWITCH PUSHBUTTON SPDT 3A 125VAC; Product Range:-; Contact Configuration:SPDT; Switch Operation:Momentary Spring Return; Contact Current Max:3A; Contact Voltage AC Nom:125V; Illumination Color:Green; Contact Voltage DC Nom:24V ;RoHS Compliant: Yes

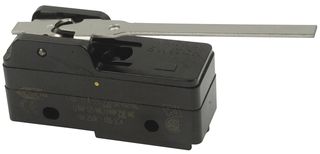

MICROSWITCH HINGE LEVER SPDT 3A 115V; Microswitch Type:Subminiature; Microswitch Actuator:Short Hinge Lever; Contact Configuration:SPDT; Switch Terminals:Solder; Contact Current Max:3A; Contact Voltage DC Nom:28VDC ;RoHS Compliant: No

LIMIT SWITCH ROTARY ADJ ROD; Limit Switch Actuator:Side Rotary; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:600V; Operating Force Max:0.33N; Product Range:-; Contact Current DC Max:10A; Contact Voltage DC Max:250V; Actuation Type:Side Rotary Rod Adjustable; Approval Bodies:CSA UL; Conduit Thread Size:20mm; Contact Current Rating:10A; External Depth:41.6mm; External Diameter:5.3mm; External Length / Height:75.8mm; External Width:42mm; Fixing Centres LxW:60 x 30; No. of Mechanical Operations:15000000; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Standard:EN60947-5-1 EN50041 IEC947-5-1 A600 AC15 Q300 DC13; Switch Operation:Off-On; Thermal Current Rating:10A

ROD ADJUSTABLE; For Use With:LS Series Limit Switches; IP / NEMA Rating:-; Product Range:-

SENSOR MASS AIR FLOW; Flow Rate:-; Flow Rate Max:6l/min; Pressure Max:25psi; Supply Voltage DC Min:8V; Supply Voltage DC Max:15V; Port Style:Manifold; Accuracy %:-; Product Range:AWM40000 Series; Air Mass Flow Range:0sl/min to 6sl/min; External Length / Height:30.2mm; External Width:30.5mm; Fixing Centres:34mm; Hysteresis:1%; Measuring Range:0l/min to 6l/min; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Output Voltage:5V; Power Consumption:60mW; Supply Voltage:10VDC; Supply Voltage Range DC:8V to 15V

CURRENT TRANSDUCER CLOSED LOOP 25A; Sensor Output:Current; Supply Voltage DC Min:14.25V; Supply Voltage DC Max:15.75V; Current Measuring Range DC:-36A to 36A; Current Measuring Range AC:-36A to 36A; Response Time:1 s

PRESSURE SENSOR 2-30PSIA; Operating Pressure Max:30psi; Port Style:Single Side Port; Pressure Measurement Type:Absolute; SVHC:No SVHC (16-Jun-2014); Connection Size:5.1m; External Depth:21.8mm; External Length / Height:8mm; External;RoHS Compliant: Yes

PRESSURE SENSOR; Operating Pressure Max:1psi; Sensor Output:Voltage; Pressure Measurement Type:Gauge; Voltage Rating:10V; Port Style:Straight; Supply Current:2mA; Product Range:24PC Series; Connection Size:0.05"; External Depth:0.86";RoHS Compliant: Yes

Pressure Sensor Miniature Silicon 5 psi Gauge Straight Voltage 10 V 2 mA ;RoHS Compliant: Yes

PRESSURE SENSOR; Operating Pressure Max:5psi; Sensor Output:Voltage; Pressure Measurement Type:Differential; Voltage Rating:10V; Port Style:Straight; Supply Current:-; Product Range:26PC Series; Connection Size:0.04"; No. of Ports:1 ;RoHS Compliant: Yes

PRESSURE SENSOR 0-15PSID; Operating Pressure Max:15psi; Sensor Output:Voltage; Pressure Measurement Type:Differential; Voltage Rating:10V; Port Style:Straight; Supply Current:-; Product Range:26PC Series; Connection Size:5.1mm; External Depth:34.4mm; External Length / Height:8mm; External Width:12.7mm; Hysteresis:0.2%; Input Impedance:7.5kohm; Operating Pressure Min:0psi; Output Impedance:2.5kohm; Response Time:1ms

Pressure Sensor Miniature Silicon 1 psi Gauge Straight Voltage 10 V ;RoHS Compliant: Yes

PRESSURE SENSOR 0-28" H2O; Operating Pressure Max:27.68Inch-H2O; Sensor Output:Voltage; Pressure Measurement Type:Differential; Voltage Rating:8VDC; Port Style:Straight; Supply Current:8mA; Product Range:160PC Series; Body Material:PET (Polyester); Depth:34.3mm; External Depth:59.8mm; Hysteresis:0.15%; Input Current:20mA; Operating Pressure Min:0Inch-H2O; Output:Voltage; Output Voltage:5V; Pressure Max:27.68psi; Pressure Sensor Type:Ultra Low Pressure; Repeatability:0.15%; Supply Voltage DC Max:16V

PRESSURE SENSOR; Operating Pressure Max:2.5Inch-H2O; Sensor Output:Voltage; Supply Current:8mA; Voltage Rating:8V; Port Style:Straight; Pressure Measurement Type:Differential; Connection Size:1.5"; External Depth:33.7mm ;RoHS Compliant: Yes

LIMIT SWITCH SIDE ROTARY SPDT-1NO/1NC; Limit Switch Actuator:Side Rotary; Contact Configuration:SPDT-1NO SPDT-NC; Contact Current AC Max:10A; Contact Voltage AC Max:600V; Operating Force Max:0.12N-m; Product Range:- ;RoHS Compliant: Yes

LIMIT SWITCH SIDE ROTARY SPDT-1NO/1NC; Limit Switch Actuator:Side Rotary; Contact Configuration:SPDT-1NO SPDT-NC; Contact Current AC Max:10A; Contact Voltage AC Max:300V; Operating Force Max:0.12N; Product Range:-; Port Style:NPT ;RoHS Compliant: Yes

SENSOR LIQUID LEVEL; Sensor Output:Digital; Supply Voltage DC Min:5V; Supply Voltage DC Max:12V; Output Current:40mA; Response Time:50 s; Product Range:LLE Series; Body Material:Polysulfone; Contact Rating:15mA at 5VDC ;RoHS Compliant: Yes
