Description

The rising popularity of global on-demand streaming services has allowed consumers to enjoy content on various devices, challenging the traditional dominance of televisions. Alongside this, the world has seen an increase in the soundbar market. Recognising this trend, Renesas has introduced this to enable designers to create next-generation soundbars.

System Benefits:

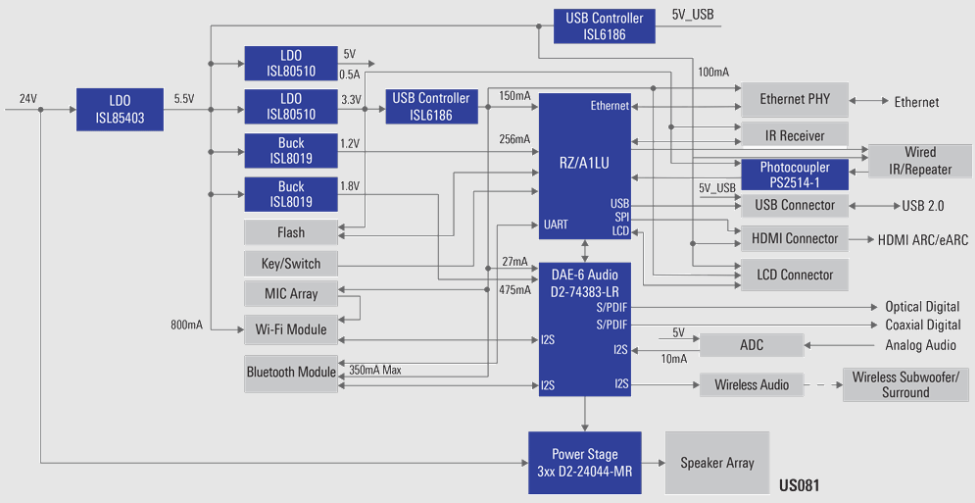

• Complete soundbar design: Left and Right surround sound with subwoofer. Bluetooth and Wi-Fi (with "Alexa" voice control) inputs. Coaxial and optical SPDIF with 7ch output.
• The D2-6 family of intelligent digital audio processor devices are complete System-on-Chip (SoC) audio processor and Class-D amplifier controllers.
• The Cost-effective RZ/A1 MPU device with an Arm^® Cortex^®-A9 core running at 400MHz and 3MB of on-chip SRAM.
• The D2-24044 audio integrated power stage device is a high-performance, integrated Class-D amplifier power stage.
