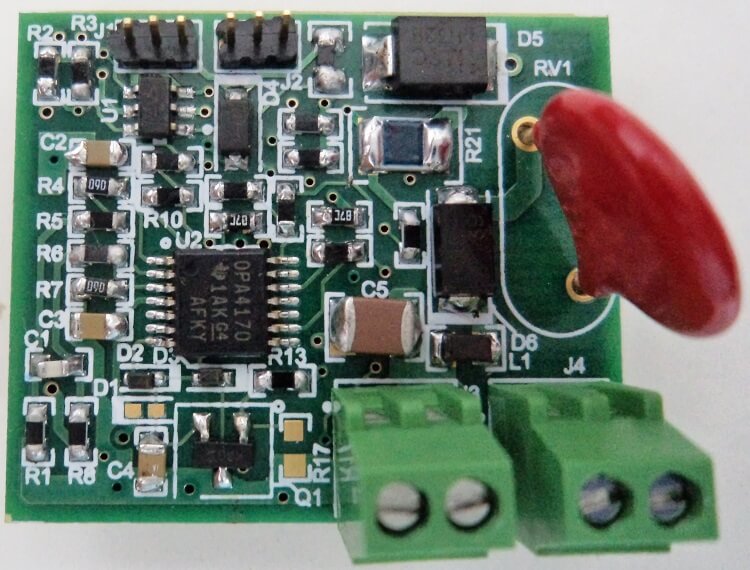

Current Controlled Driver for 24-V DC Solenoid with Plunger Fault Detection Reference Design
Description
TIDA-00289 integrates current control and plunger movement detection into the solenoid coil. Various applications in the field of industrial automation and material processing will benefit from up to 70% reduced power consumption: accelerated process time: greatly simplified usage and enhanced monitoring capabilities.
Features
- PWM-based current control optimizes power consumption for peak and hold time according to fixed time settingsTwo options for plunger movement detection: back-EMF and hall sensor basedAutomatic switchover from peak-to-hold current mode at the end of completion of plunger movementActivates alarm signal on detection of faulty plunger movement: under voltage or controller over temperatureComplies with EN55011-Class A conducted emission limits
Applications
- String inverter
- Actuator
- Washer & dryer
- Refrigerator & freezer
- Multiparameter patient monitor
- Micro inverter
- Three phase UPS
- Power transfer units
- Flight control unit
- Dishwasher
- Oven
- Coffee machine
- Mixer
- blender & food processor
- Air conditioner outdoor unit
- AC charging (pile) station
- Cooker hood
- Textile machine
- Central inverter
- Fuel cell inverter
- DC fast charging station
- Battery energy storage system
- Power conversion system (PCS)
- Solar arc protection
- Rapid shutdown
- Off-highway vehicles electric drive
- Single phase online UPS
- Air conditioner indoor unit
- Mother & neonatal care monitor
- Contractor circuit
- DC fast charging power module
Product Categories
- Amplifiers
| Download the bill of materials for TIDA-00289 | Download |
Test Data
Get results faster with test and simulation data that's been verified.
Download the test file for TIDA-00289| Title | Updated | Type | Size (KB) | |
|---|---|---|---|---|
| TIDA-00289 Gerber | 05 Nov 2014 | ZIP | 256 | |
| TIDA-00289 CAD Files | 05 Nov 2014 | ZIP | 3485 | |
| TIDA-00289 PCB | 05 Nov 2014 | 957 | ||
| TIDA-00289 Assembly Drawing | 05 Nov 2014 | 161 | ||
| TIDA-00289 BOM | 05 Nov 2014 | 48 | ||
| TIDA-00289 Schematic | 05 Nov 2014 | 284 |
