TIDA-00601 Reference Design

Texas Instruments

Multi-phase Energy Measurement with Isolated Shunt Sensors Reference Design

Description

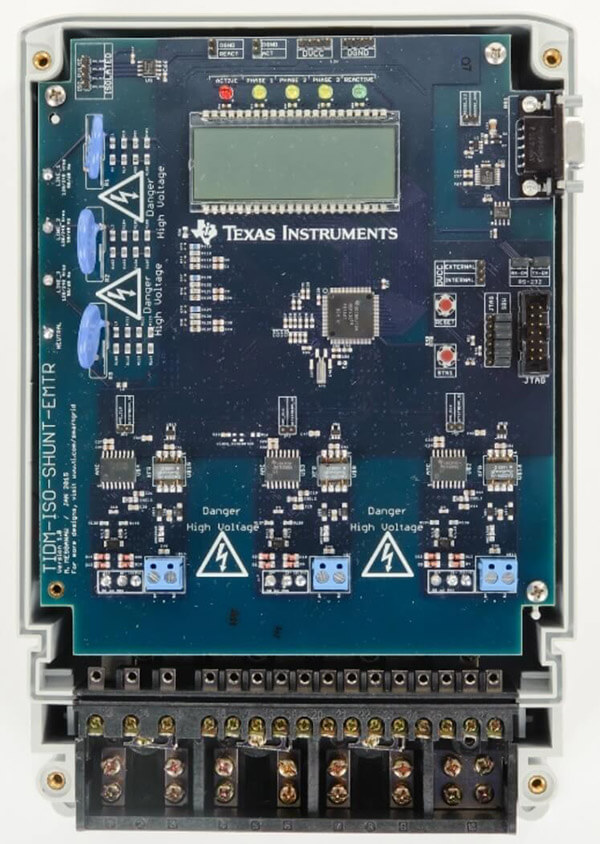

The TIDA-00601 design implements a Class 0.5% three-phase energy measurement system with isolated shunt sensors.  The isolation is achieved through the use of isolated delta-sigma modulators that have output circuitry capacitively isolated from input circuitry.  An energy measurement SoC takes the different bit-streams from the isolated modulators and uses its on-board digital filters to produce ADC sample readings.  The energy measurement SoC is also used for sensing voltages: calculating metrology parameter values: driving the board’s LCD: and communication to a PC GUI via the board’s isolated RS-232 circuitry.This reference design uses the ISO7420 and ISO7421. This reference design can also be used with the ISO7320C and ISO7321C.This reference design uses the AMC1304M05. This reference design can also be used with the AMC1304M25.This reference design uses the MSP430F67641. This reference design can also be used with the MSP430F67641A.

Features
  • Class 0.5% three-phase metrology with galvanically isolated shunt current sensorsShunt isolation with working isolation voltage up to 1 kV AC and peak isolation voltage of 7kVTI Energy Library firmware calculates all energy measurement parameters including active and reactive power and energy: RMS current and voltage: power factor: and line frequencyIsolated RS-232 with 3 kV RMS operating isolation boundary for communication to PC GUIBuilt-in 160-segment display for display of  metrology parameters
Applications
  • Electricity meter
  • Process analytics
  • AC charging (pile) station
  • DC fast charging station
  • DC fast charging power module
Product Categories
  • Isolation

Parts

Part Number Name Companion Part
ISO7420 ISO7420 Buy Datasheet
ISO7421 ISO7421 Buy Datasheet
SN6501 SN6501 Buy Datasheet
TRS3232 TRS3232 Buy Datasheet

Software

Bill Of Materials

Download the bill of materials for TIDA-00601 Download

Schematic

Quickly understand overall system functionality.

Download the schematic for TIDA-00601

Test Data

Get results faster with test and simulation data that's been verified.

Download the test file for TIDA-00601

Other Documents

Title Updated Type Size (KB)
TIDA-00601 CAD Files (Rev. A) 12 Aug 2015 ZIP 350
TIDA-00601 BOM (Rev. A) 12 Aug 2015 PDF 249
TIDA-00601 Schematic (Rev. A) 12 Aug 2015 PDF 96
TIDA-00601 Gerber 28 May 2015 ZIP 288
TIDA-00601 PCB 28 May 2015 PDF 380
