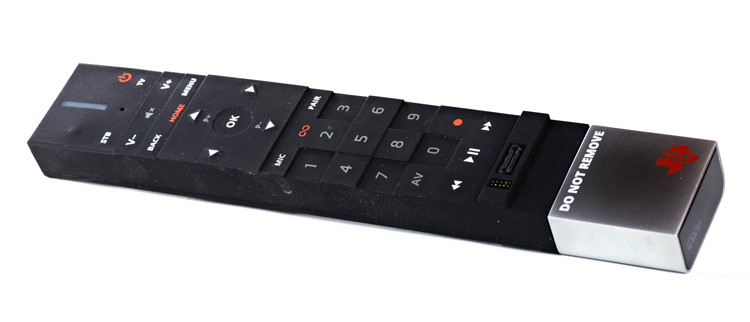

TIDC-CC2650RC Reference Design

Texas Instruments

Voice Remote Control Reference Design

Description

The SimpleLink™ multi-standard CC2650 remote control reference design is an all-in-one solution for development of voice-based Bluetooth® low energy: ZigBee® RF4CE™ or multi-standard remote controls. The reference design demonstrates the recommended layout for decoupling and RF in order to achieve the best RF performance. The design uses discrete components for the balun and filter and an inverted F PCB antenna which gives good performance at a low cost.

Features
  • Designed to comply with ETSI (EN300328) and FCC (FCC part 15.247) specificationsMulti-standard: Bluettoh low energy and Zigbee RF4CE connectivityAdvanced features such as voice-activated commands and searchUltra-low power with low active and sleep current: fast start-up times and fast switching between modes
Applications
  • STB & DVR
  • Garage door system
  • Humanoid
  • Streaming media player
  • RF smart remote control
Product Categories

Parts

Part Number Name Companion Part
SN74LV164A SN74LV164A Buy Datasheet
TPS22910A TPS22910A Buy Datasheet
