TIDEP0079 Reference Design

Texas Instruments

EtherCAT® Reference Design on Sitara AM57x Gb Ethernet and PRU-ICSS with Time Triggered Send

Description

The TIDEP0079 reference design demonstrates an EtherCAT® master interface running on the Sitara™ AM572x processor using the EC-Master stack from acontis. This EtherCAT master solution can be used for EtherCAT-based PLC or motion control applications. EtherCAT master is profiled on both the Ethernet switch and the PRU-ICSS Ethernet ports of the AM572x processor to give designers flexibility to use any of the two switch ports or four PRU-ICSS Ethernet ports on the device. The EtherCAT master implementation can achieve less than 100µs cycle times for both the switch and the PRU-ICSS Ethernet ports. Time-triggered send (TTS) can be enabled on the PRU-ICSS to reduce jitter: achieve shorter cycle times: and reduce latency in cases where distributed clocking is not used.

Features

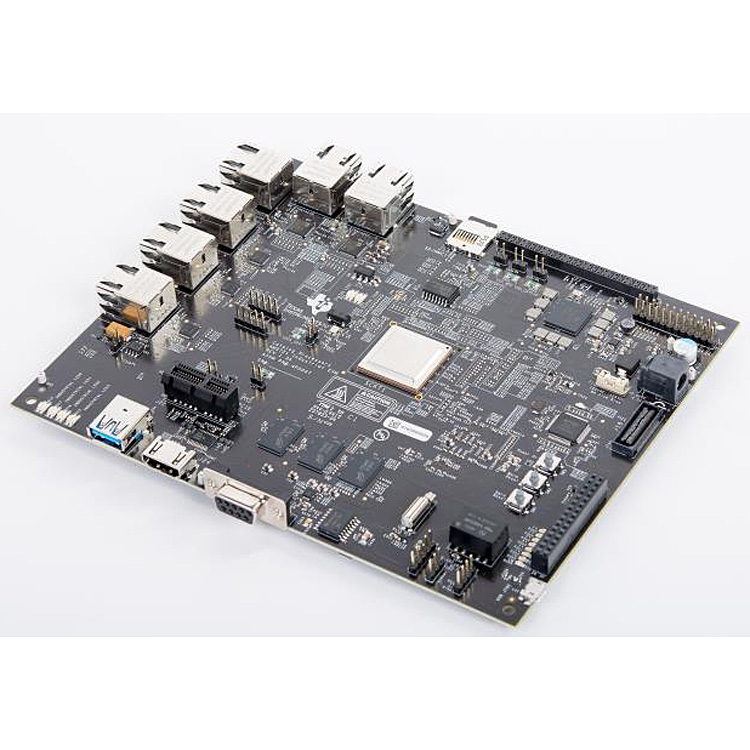

  • Examples for implementing EtherCAT master on both the Ethernet switch (CPSW) and the PRU-ICSS Ethernet ports for design flexibilityEtherCAT master on PRU-ICSS featuring Time Triggered SendHighly portable acontis EC-Master stackCycle CPU consumption of less than 30µs is achieved for both the Ethernet switch and PRU-ICSS Ethernet portsEtherCAT class A or class B master stack according to ETG.1500 specificationThis reference design is tested on the TMDXIDK5728 board and includes documentation: software: demo application: and HW design files
Applications
  • Digital input module
  • Digital output module
  • CPU (PLC Controller)
  • Communication module
  • Telemetry & RTUs
  • Welding machine
  • Aircraft cockpit display
  • Interconnect/distribution box
  • DIN rail power supply
  • Mixed module (AI
  • AO
  • DI
  • DO)
  • Servo drive control module
  • AC drive control module
  • Textile machine
  • Printing & paper machine
  • AC drive communication module
  • Laser
  • Battery cell formation & test equipment
  • Drone flight controller system
  • Drone remote controller
  • Servo drive communication module
  • Stand-alone remote IO
  • Condition monitoring module
  • Condition monitoring gateway
  • Linear motor segment controller
  • CT & PET scanner
  • Circuit breaker (ACB
  • MCCB
  • VCB)
  • Injection molding machine
  • X-ray systems
Product Categories

End Equipment Reference Diagrams

Application Area End Equipment
Digital input module https://www.ti.com/solution/digital-input-module#referencedesigns
Digital output module https://www.ti.com/solution/digital-output-module#referencedesigns
CPU (PLC Controller) https://www.ti.com/solution/cpu-plc-controller#referencedesigns
Communication module https://www.ti.com/solution/communication-module#referencedesigns
Telemetry & RTUs https://www.ti.com/solution/telemetry-rtus#referencedesigns
Welding machine https://www.ti.com/solution/welding-machine#referencedesigns
Aircraft cockpit display https://www.ti.com/solution/aircraft-cockpit-display#referencedesigns
Interconnect/distribution box https://www.ti.com/solution/interconnect-distribution-box#referencedesigns
DIN rail power supply https://www.ti.com/solution/din-rail-power-supply#referencedesigns
Mixed module (AI https://www.ti.com/solution/mixed-module-ai-ao-di-do#referencedesigns
AO https://www.ti.com/solution/servo-drive-control-module#referencedesigns
DI https://www.ti.com/solution/ac-drive-control-module#referencedesigns
DO) https://www.ti.com/solution/textile-machine#referencedesigns
Servo drive control module https://www.ti.com/solution/printing-paper-machine#referencedesigns
AC drive control module https://www.ti.com/solution/ac-drive-communication-module#referencedesigns
Textile machine https://www.ti.com/solution/laser#referencedesigns
Printing & paper machine https://www.ti.com/solution/battery-cell-formation-test-equipment#referencedesigns
AC drive communication module https://www.ti.com/solution/drone-flight-controller-system#referencedesigns
Laser https://www.ti.com/solution/drone-remote-controller#referencedesigns
Battery cell formation & test equipment https://www.ti.com/solution/servo-drive-communication-module#referencedesigns
Drone flight controller system https://www.ti.com/solution/stand-alone-remote-io#referencedesigns
Drone remote controller https://www.ti.com/solution/condition-monitoring-module#referencedesigns
Servo drive communication module https://www.ti.com/solution/condition-monitoring-gateway#referencedesigns
Stand-alone remote IO https://www.ti.com/solution/linear-motor-segment-controller#referencedesigns
Condition monitoring module https://www.ti.com/solution/ct-pet-scanner#referencedesigns
Condition monitoring gateway https://www.ti.com/solution/circuit-breaker-acb-mccb-vcb#referencedesigns
Linear motor segment controller https://www.ti.com/solution/injection-molding-machine#referencedesigns
CT & PET scanner https://www.ti.com/solution/x-ray-systems#referencedesigns

Parts

Part Number Name Companion Part
CDCE913 CDCE913 Buy Datasheet
SN65HVD78 SN65HVD78 Buy Datasheet
SN74LVC1G07 SN74LVC1G07 Buy Datasheet
TLK105L TLK105L Buy Datasheet

Bill Of Materials

Download the bill of materials for TIDEP0079 Download

Schematic

Quickly understand overall system functionality.

Download the schematic for TIDEP0079

Test Data

Get results faster with test and simulation data that's been verified.

Download the test file for TIDEP0079
