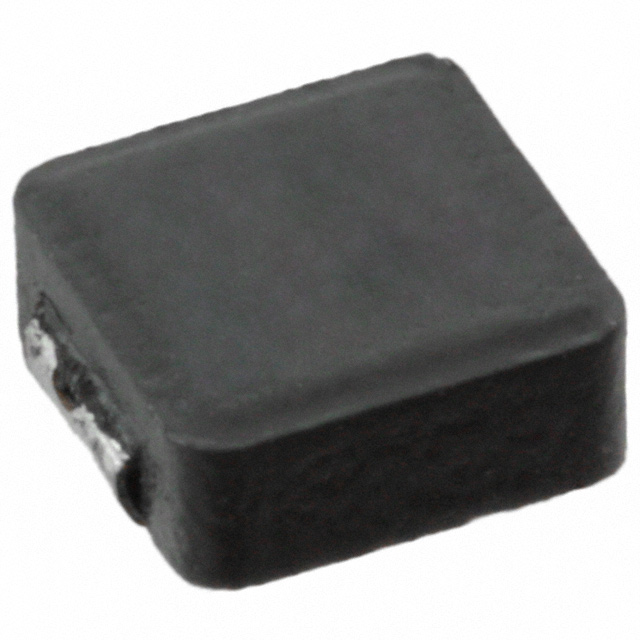

INDUCTOR WE-LHMI 7030 6.8UH 8A; Product Range:WE-LHMI Series; Inductance:6.8µH; RMS Current (Irms):3.4A; Saturation Current (Isat):8A; Inductor Construction:Shielded; DC Resistance Max:0.06ohm; Power Inductor Case:7.3mm x 6.6mm x 2.8mm; Inductance Tolerance:± 20%; Packaging:Cut Tape

POWER INDUCTOR PD 1280; Product Range:-; Inductance:3.5µH; RMS Current (Irms):8.9A; Saturation Current (Isat):9.6A; Inductor Construction:Shielded; DC Resistance Max:0.014ohm; Power Inductor Case:12mm x 12mm x 8mm; Inductance Tolerance:-20% to +40%; Packaging:Cut Tape; Resonant Frequency:37.5MHz

HEADER 3.0MM DUAL ROW CLIP 8WAY; Product Range:WR-MPC3 Series; Contact Termination Type:Surface Mount; Gender:Header; No. of Contacts:8Contacts; Pitch Spacing:3mm; Contact Gender:Pin; Connector Mounting:PCB Mount; Contact Material:Copper; Contact Plating:Tin Plated Contacts; Connector Shell Size:-; No. of Rows:2Rows; Contact Termination:Surface Mount Vertical

HEADER 3.0MM DUAL ROW CLIP 18WAY; Product Range:-; Contact Termination Type:Surface Mount; Gender:Header; No. of Contacts:18Contacts; Pitch Spacing:3mm; Contact Gender:Pin; Connector Mounting:PCB Mount; Contact Material:Copper; Contact Plating:Tin Plated Contacts; Connector Shell Size:-; No. of Rows:2Rows; Contact Termination:Surface Mount Vertical

PLUG 3MM DUAL ROW EARS 24WAY; Product Range:WR-MPC3 Series; Gender:Plug; No. of Positions:24Ways; Pitch Spacing:3mm; For Use With:WR-MPC4 Pin Contacts; No. of Rows:2Rows

CHOKE 650UH 0.48 OHM 0.4A 75W; Power Rating:75W; Product Range:-; DC Current Rating:400mA; Primary Inductance:650µH; DC Resistance 1 Max:0.48ohm; Turns Ratio:75:7; Packaging:Each

CHOKE 250UH 0.3 OHM 1.1A 200W; Power Rating:200W; Product Range:-; DC Current Rating:1.1A; Primary Inductance:250µH; DC Resistance 1 Max:0.3ohm; Turns Ratio:50:5; Packaging:Each

CHOKE 150UH 0.19 OHM 1.4A 250W; Power Rating:250W; Product Range:WE-PFC Series; DC Current Rating:1.4A; Primary Inductance:150µH; DC Resistance 1 Max:0.19ohm; Turns Ratio:42:5; Packaging:Each

POWER INDUCTOR 4.7UH 1.55A 38MHZ; Product Range:-; Inductance:4.7µH; RMS Current (Irms):1.55A; Saturation Current (Isat):2.9A; Inductor Construction:Shielded; DC Resistance Max:0.103ohm; Power Inductor Case:4.8mm x 4.8mm x 2.8mm; Inductance Tolerance:± 20%; Packaging:Cut Tape; Self Resonant Frequency Min:38MHz

POWER INDUCTOR 6.8UH 1.45A 30MHZ; Product Range:-; Inductance:6.8µH; RMS Current (Irms):1.45A; Saturation Current (Isat):2.4A; Inductor Construction:Shielded; DC Resistance Max:0.13ohm; Power Inductor Case:4.8mm x 4.8mm x 2.8mm; Inductance Tolerance:± 20%; Packaging:Cut Tape; Self Resonant Frequency Min:30MHz

INDUCTOR 6.8NH 1A 5.5GHZ; Product Range:WE-KI Series; Inductance:6.8nH; DC Current Rating:1A; High Frequency Inductor Case:1008 [2520 Metric]; Inductor Construction:Wirewound; DC Resistance Max:0.06ohm; Inductance Tolerance:± 5%; Self Resonant Frequency Min:5.5GHz; Packaging:Cut Tape; Inductor Case Style:1008 [2520 Metric]

DUST COVER USB TYPE A; Accessory Type:Dust Cap; For Use With:USB Type A Connectors; Connector Body Material:ABS (Acrylonitrile Butadiene Styrene) Body; Product Range:-

DUST COVER USB TYPE A; Accessory Type:Dust Cap; For Use With:USB Type A Connectors; Connector Body Material:Nylon (Polyamide) Body; Product Range:-

FFC FPC TOP SMT 1MM R/A 30WAY; Pitch Spacing:1mm; No. of Contacts:30Contacts; Gender:Receptacle; Product Range:-; Contact Termination Type:Surface Mount; Contact Position:Top; No. of Rows:1 Row; Contact Plating:Tin Plated Contacts; Contact Material:Phosphor Bronze; FFC/FPC Thickness:0.34mm; Contact Termination:Surface Mount Right Angle; No. of Rows:1Rows

SHIELDING CABINET SMD; Enclosure Type:Shielding Cabinet; Enclosure Material:Tin Plate; IP Rating:-; NEMA Rating:-; External Height - Metric:50mm; External Width - Metric:50mm; External Depth - Metric:3mm; Body Colour:-; External Height - Imperial:1.97"; External Width - Imperial:1.97"; External Depth - Imperial:0.12"; Product Range:-

TRANSFORMER WE-CST 3000UH 10A 1:125; Turns Ratio:1:125; DC Resistance:6.5ohm; Inductance:3mH; ET Constant:68Vµs; Primary Current:10A; Transformer Mounting:Surface Mount; Product Range:WE-CST Series

TRANSFORMER DC/DC CONV 23.3UH 0.97A; Turns Ratio:-; Isolation Voltage:500V; Product Range:Flyback Transformer FLEX Series; Inductance:23.3µH; DC Resistance:0.14ohm; ET Constant:-

TRANSFORMER DC/DC CONV 9.3UH 0.97A; Turns Ratio:-; Isolation Voltage:500V; Product Range:-; Inductance:9.3µH; DC Resistance:0.14ohm; ET Constant:-

TRANSFORMER DC/DC CONV 22.3UH 1.7A; Turns Ratio:-; Isolation Voltage:500V; Product Range:-; Inductance:22.3µH; DC Resistance:0.071ohm; ET Constant:-

TRANSFORMER DC/DC CONV 9.7UH 1.7A; Turns Ratio:-; Isolation Voltage:500V; Product Range:-; Inductance:9.7µH; DC Resistance:0.071ohm; ET Constant:-
